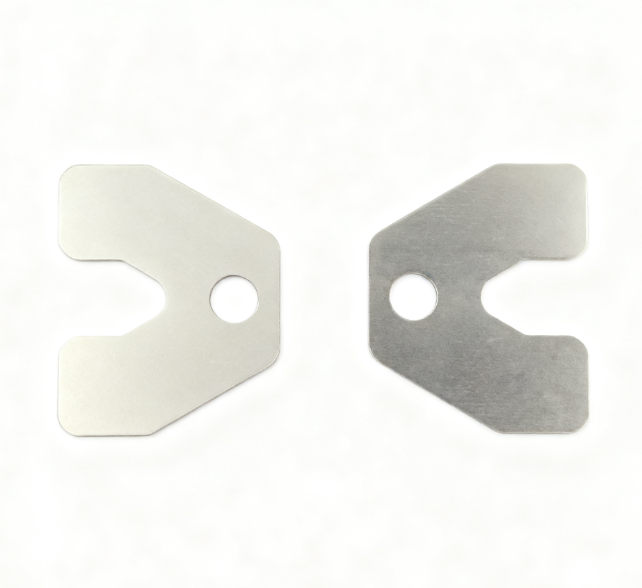

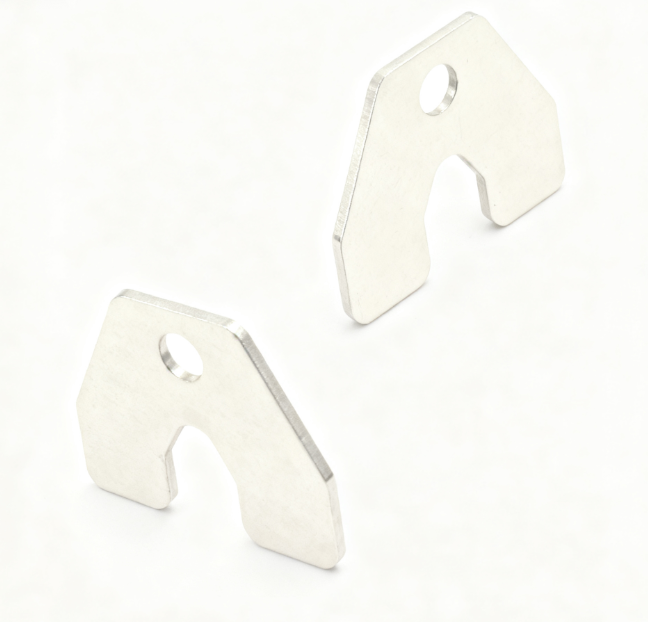

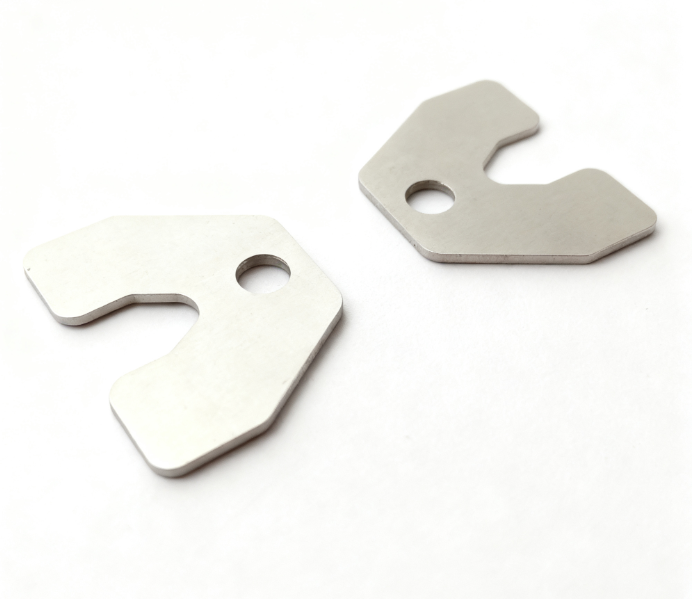

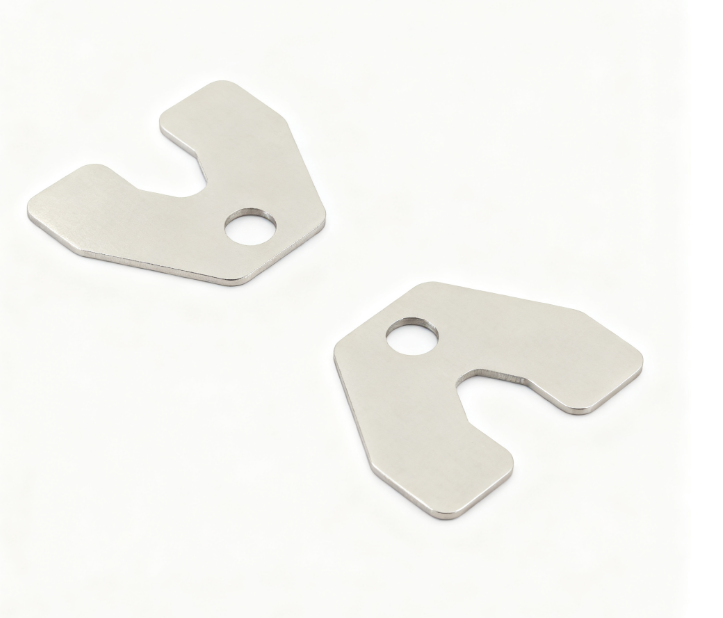

This Exhaust Valve Sheet is a precision-engineered replacement component designed for Edwards RV series vacuum pumps, including the RV3, RV5, RV8, and RV12 models. As a critical internal part of the pump's exhaust mechanism, it ensures the efficient and sealed expulsion of gases. A worn or damaged exhaust valve sheet is a common cause of performance degradation in these oil-sealed rotary vane vacuum pumps.
This OEM-quality replacement part is manufactured to meet strict original equipment specifications, guaranteeing a perfect fit and reliable operation. It is an essential item for the routine maintenance and overhaul of these industry-standard pumps, helping to restore and maintain their specified ultimate vacuum pressure (e.g., 2.0 x 10⁻³ mbar for high vacuum mode) and pumping speed.
Precision Fit: Manufactured to exact Edwards OEM dimensions and tolerances for a perfect fit and seamless operation within RV3, RV5, RV8, and RV12 vacuum pumps.
Restored Pump Performance: Replaces worn or damaged valve sheets to help the pump achieve its optimal ultimate vacuum pressure and maintain consistent pumping speed, addressing issues like the inability to reach base pressure.
Durable Construction: Made from high-quality materials designed to withstand the continuous mechanical impact and chemical environment inside the pump's oil reservoir, ensuring a long service life.
Prevents Performance Issues: A properly functioning exhaust valve is crucial for maintaining the pump's efficiency in handling water vapor and other gases, which is a key feature of the RV series.
Easy Maintenance: This part is a key component in routine pump overhaul and maintenance kits, allowing for straightforward replacement by a qualified technician to resolve common problems like vacuum degradation and excessive noise.
| Specification | Details |
|---|---|
| Part Type | Exhaust Valve Sheet |
| Compatible Pump Models | Edwards RV3, RV5, RV8, RV12 |
| Pump Type | Two-stage, oil-sealed rotary vane vacuum pumps |
| Quality Standard | Meets or Exceeds OEM Specifications |
| Condition | New, High-Quality Replacement |
This exhaust valve sheet is essential for maintaining Edwards RV series pumps, which are widely used in various scientific and industrial applications, including:
Analytical Instruments: Gas Chromatography-Mass Spectrometry (GCMS), electron microscopes (SEM).
Laboratory & Research: Freeze drying, rotary evaporation, filtration, distillation.
Industrial Processes: Coating, degassing, and furnace work.
This exhaust valve sheet is designed as a direct replacement for the following Edwards vacuum pump models:
Edwards RV3
Edwards RV5
Edwards RV8
Edwards RV12
Verification is Crucial: Always verify your pump's full model number from the unit's nameplate before purchase. This part is also included in the general maintenance kit (A652-01-131) for RV series pumps.
Be aware of these common signs that may indicate the need for a valve sheet replacement:
Poor Ultimate Vacuum: The pump cannot reach its base pressure (e.g., 2.0 x 10⁻³ mbar) even after adequate pumping time.
Slow Pumping Speed: The time required to evacuate a vessel increases significantly.
Increased Noise: Unusual operational noises from the pump.
Oil Leaks: In some cases, a failing valve can contribute to oil leakage issues.
Guaranteed Compatibility: Precision-manufactured to ensure perfect integration with your Edwards RV series pump, restoring its original performance and reliability.
Proven Reliability: Made from quality materials to provide a durable and long-lasting repair, minimizing equipment downtime.
Expert Support: We specialize in vacuum pump parts and can provide assistance to ensure you select the correct component.
Q: How can I confirm this exhaust valve sheet is compatible with my specific Edwards pump model?
A: This sheet is designed for the RV3, RV5, RV8, and RV12 models. For absolute certainty, please check the full model number on your pump's nameplate. Our support team can also assist with verification.
Q: Is this a genuine Edwards OEM part?
A: This is a high-quality aftermarket replacement part manufactured to strict OEM specifications, offering reliable performance and a perfect fit at a competitive price.
Q: What other components should I replace when performing maintenance?
A: For a comprehensive overhaul, we recommend inspecting and replacing other wear parts simultaneously. Consider replacing the vanes (blades), the entire maintenance kit (A652-01-131) which includes O-rings, seals, and other gaskets, and changing the vacuum pump oil (Ultragrade 19).
Q: Do you provide technical data sheets for this part?
A: Specifications and compatibility information are provided here. For detailed engineering drawings, please contact our support team.
